TABLEMILL

Highlights:

  • Highly dynamic 5-axis simultaneous machining
  • Travel range up to X/Y/Z: 4,800 / 2,710 / 1,400 mm
  • Powerful milling spindle HSK-A63 with 170 Nm torque as standard
  • Compact installation layout with large working space
  • CNC control HEIDENHAIN TNC 640
  • Tool magazine with 60 places as standard

The portal machining centres in the TABLEMILL series offer full 5-axis simultaneous machining thanks to their 2-axis fork milling heads. The gantry structure ensures maximum dynamics and speeds. The machines can be loaded with heavy workpieces and are characterized by their perfect suitability for mould and die-making.

Core components

Our machines are characterized by the optimal synergy between core components of the machine tool. Thanks to a close technological partnership to develop core components such as milling heads and spindles, we can now offer our customers manufacturing solutions that are specially tailored to their requirements, even beyond the usual standards.

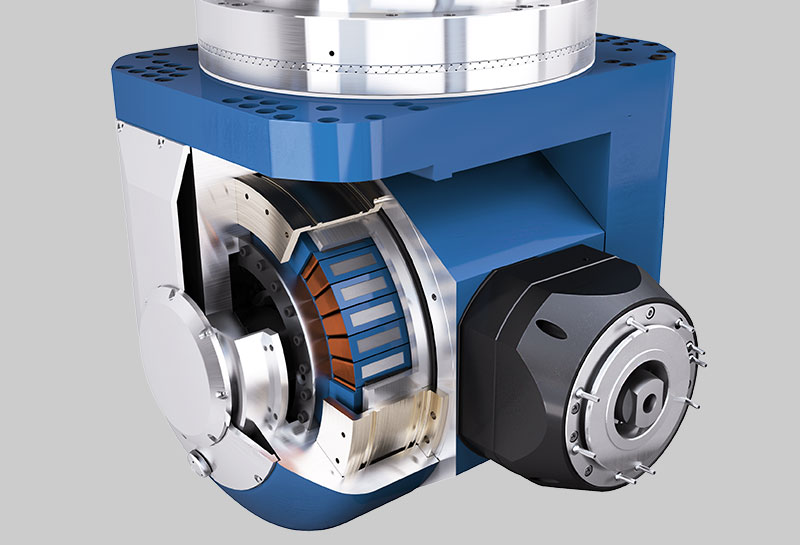

Fork milling heads

  • Direct drive with torque motors
  • Swivel range A-axis: ± 110°
  • Swivel range C-axis: ± 360°
  • Very high acceleration values
  • Excellent positioning accuracy

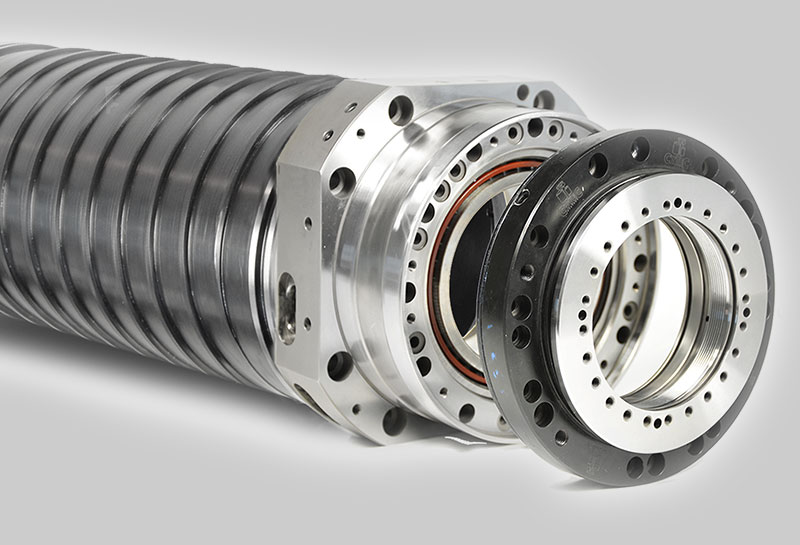

Milling spindle

  • Wide selection of spindle options
  • High-speed HSK-A63 with up to 24,000 rpm
  • High-torque HSK-A100 with up to 300 Nm torque (S6)
  • Innovative cooling design

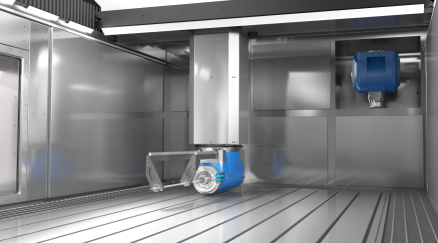

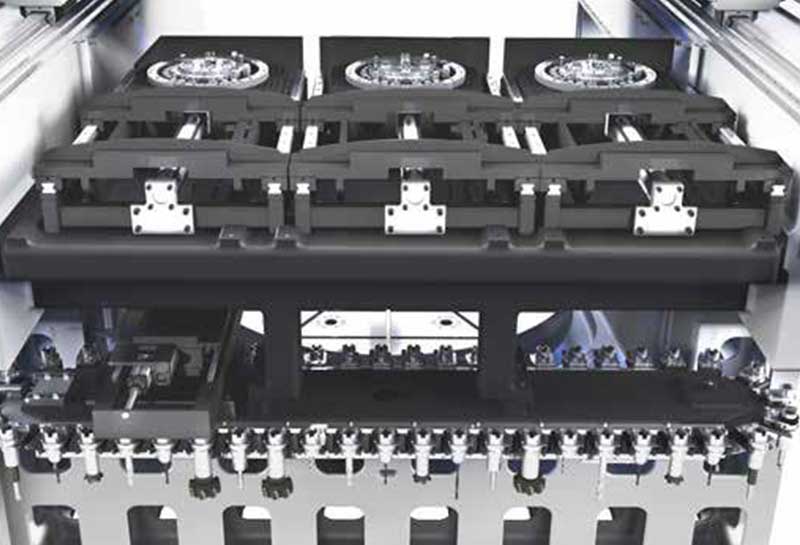

Automatic head exchange

  • Technology exchange within the machine
  • A total of 3 possible technologies
  • Rough cutting, finishing, and grinding on a single machine
  • Individually customizable tool magazine

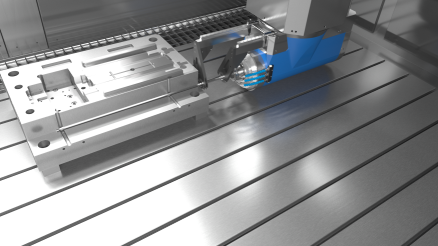

DEEP HOLE DRILLING DRILL X

The machines of the TABLEMILL series can optionally be equipped with a fully integrated deep hole drilling unit. By using the automatic head change, the machine can be converted into a deep hole drilling machine fully automatically within a very short time. Combine classic 5-axis simultaneous machining with deep hole drilling technology and increase your productivity sustainably by avoiding multiple reclamping on different machines.

Deep Hole Drilling Unit

  • Flexible and highly economical
  • automatically moving steady rests
  • a machining center becomes a fullfledged deep hole drilling machine
  • Full software integration

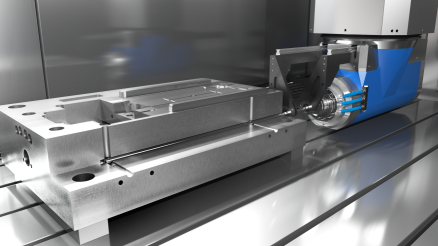

Deep Hole Drilling

  • Drilling depth: up to 850 mm
  • Drilling diameter: up to 20 mm
  • Tool taper: HSK-A63 / A100, SK 40/50
  • Number of steady rests: 2 pieces
  • Internal coolant supply up to 100 bar

Automated Integration

  • With the automatic head change option
  • Technology change in less than a minute

Technical specifications

Working area
Travels axis X mm 2,400|3,600|4,800
Travels axis Y mm 1,360|2,035|2,710
Travels axis Z mm 1,200|1,400
Rapid traverse X / Y / Z m/min 50 / 50 / 50
Acceleration X / Y / Z m/s² 6
Feed force N 10,000
Portal passage
Width Y: mm 2,030 to 3,470
Height Z: mm Standard Portal: 1,450 / Extended Portal: 1,650
Control system
HEIDENHAIN TNC 640
2-axis fork type milling head A-/C-axis
Swivel range ° ±100 / ± 360
Swivel speed °/s 360 / 360
Torque nominal / max. Nm A: 710/1,340; C: 780/1,530
Clamping moment Nm 4,000 / 4,000
Positioning accuracy " ± 2 /± 2
Main spindle
Power S1 / S6 kW 21 / 27
Torque, max. S1 / S6 Nm 100 / 130
Speed, max. min-1 18,000
Tool taper   HSK-A63
Tool magazine
Places   48/64 HSK-A63 - 39/52 HSK-A100
Tool weight, max. kg 8 HSK-A63 - 15 HSK-A100
Tool length, max. mm 300
Tool taper / diamater mm Ø 105/130 / HSK-A63 - Ø125/175 / HSK-A100
Installation data
Space requirements X / Y / Z mm 7,060 to 9,940 / 6,580 to 7,920 / 4,500 to 5,700
Weight kg 32,000 - 38,000
Power requirements kVA 110
Connection V 3 x 400 / 50 Hz
Air supply bar 6
